Chapter 5 Modeling
5.1 Libraries
# Libraries to install
# List of packages to check/install
packages <- c("data.table", "tidyverse", "rjags", "MCMCvis", "ggExtra")
# Function to check and install packages
install_if_missing = function(pkg) {
if (!require(pkg, character.only = TRUE)) {
install.packages(pkg, dependencies = TRUE)
library(pkg, character.only = TRUE)
} else {
cat(paste("Package", pkg, "is already installed.\n"))
}
}
# Apply the function to each package in the list
lapply(packages, install_if_missing)## Package data.table is already installed.
## Package tidyverse is already installed.
## Package rjags is already installed.
## Package MCMCvis is already installed.
## Package ggExtra is already installed.## [[1]]
## NULL
##
## [[2]]
## NULL
##
## [[3]]
## NULL
##
## [[4]]
## NULL
##
## [[5]]
## NULL5.2 Data
We have a dataset representing heifer performance, feeding behavior, and dry matter intake over a 56 day back grounding period. Heifers were assigned to a 2x2 crossover design to test a feed additives effect on animal behavior, performance, and morbidity during weaning.
5.2.1 Feed intake

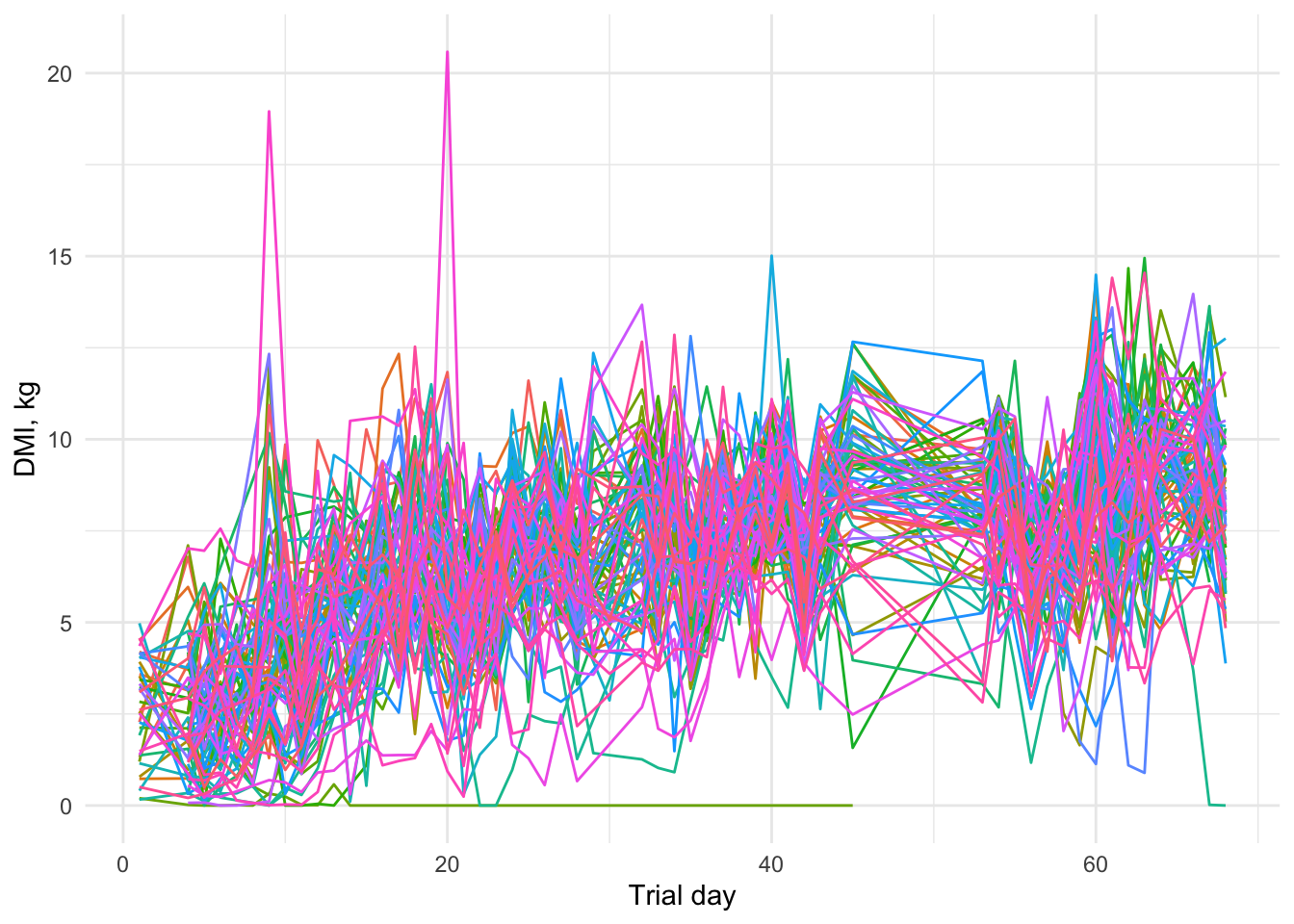

First, lets show what dry matter intake (DMI) looks like over the course of the feeding study.
## # A tibble: 6 × 7
## Date date_relative EID VID Pen Status DMI
## <dttm> <dbl> <dbl> <dbl> <chr> <chr> <dbl>
## 1 2015-10-29 00:00:00 1 9.82e14 248 Pen #8 OK 2.28
## 2 2015-10-29 00:00:00 1 9.82e14 249 Pen #8 OK 1.32
## 3 2015-10-29 00:00:00 1 9.82e14 276 Pen #6 OK 3.59
## 4 2015-10-29 00:00:00 1 9.82e14 298 Pen #6 OK 4.19
## 5 2015-10-29 00:00:00 1 9.82e14 322 Pen #8 OK 4.5
## 6 2015-10-29 00:00:00 1 9.82e14 346 Pen #6 OK 0.729## Date date_relative EID VID Pen Status DMI
## Min. :2015-10-29 00:00:00 Min. : 1.00 Min. :9.82e+14 Min. :248.0 Length:4115 Length:4115 Min. : 0.000
## 1st Qu.:2015-11-15 00:00:00 1st Qu.:18.00 1st Qu.:9.82e+14 1st Qu.:672.0 Class :character Class :character 1st Qu.: 4.923
## Median :2015-11-30 00:00:00 Median :33.00 Median :9.82e+14 Median :712.0 Mode :character Mode :character Median : 6.777
## Mean :2015-12-01 00:14:20 Mean :34.01 Mean :9.82e+14 Mean :670.4 Mean : 6.525
## 3rd Qu.:2015-12-21 00:00:00 3rd Qu.:54.00 3rd Qu.:9.82e+14 3rd Qu.:756.0 3rd Qu.: 8.334
## Max. :2016-01-04 00:00:00 Max. :68.00 Max. :9.82e+14 Max. :821.0 Max. :20.583intake %>%
ggplot(aes(x=date_relative, y = DMI, color = factor(VID)))+
geom_line()+
labs(x = 'Trial day',
y = 'DMI, kg')+
theme_minimal()+
theme(legend.position = 'none')
## # A tibble: 6 × 21
## VID Pen CreepTrt WeanTrt D_42_BW Creep_Gain Shipping_Loss Day56_InitialBW Day56_ADG Day56_MMBW Day56_DMI Day56_Residual D_1_EV AVE_TTB BVFREQ BVDUR BVFREQsd
## <dbl> <dbl> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 248 8 A A 261. 34.5 -5.44 287. 1.22 1.22 6.97 -0.118 0.44 36.2 81.0 6451. 81.0
## 2 249 8 A A 210. 23.1 -4.54 223. 0.946 0.946 6.54 0.266 0.389 23.3 91.4 7143. 91.4
## 3 276 6 B A 177. 29.0 -3.63 200. 1.15 1.15 6.24 0.266 0.365 69.8 76.6 7471 76.6
## 4 298 6 B A 198. 30.8 -6.80 218. 1.06 1.06 6.29 -0.149 0.555 84.1 85.7 5156. 85.7
## 5 322 8 A A 198. 34.5 -3.63 233. 1.30 1.30 7.29 0.376 0.662 51.5 59.2 8871. 59.2
## 6 346 6 B A 189. 13.6 -2.27 185. 0.716 0.716 5.61 -0.0531 0.572 48.0 63.9 6888. 63.9
## # ℹ 4 more variables: BVDURsd <dbl>, uDMI <dbl>, sdDMI <dbl>, cvDMI <dbl>## VID Pen CreepTrt WeanTrt D_42_BW Creep_Gain Shipping_Loss Day56_InitialBW Day56_ADG
## Min. :248.0 Min. :5.000 Length:77 Length:77 Min. :160.0 Min. : 5.897 Min. :-52.6167 Min. :155.5 Min. :0.05724
## 1st Qu.:672.0 1st Qu.:6.000 Class :character Class :character 1st Qu.:179.5 1st Qu.:23.133 1st Qu.:-12.2470 1st Qu.:196.8 1st Qu.:0.83159
## Median :714.0 Median :7.000 Mode :character Mode :character Median :195.0 Median :30.844 Median : -8.1647 Median :208.4 Median :0.96550
## Mean :670.8 Mean :6.519 Mean :195.3 Mean :29.949 Mean : -9.2486 Mean :208.5 Mean :0.93066
## 3rd Qu.:756.0 3rd Qu.:7.000 3rd Qu.:207.3 3rd Qu.:35.834 3rd Qu.: -5.4431 3rd Qu.:220.5 3rd Qu.:1.11022
## Max. :821.0 Max. :8.000 Max. :260.9 Max. :84.368 Max. : 0.9072 Max. :287.2 Max. :1.38238
## Day56_MMBW Day56_DMI Day56_Residual D_1_EV AVE_TTB BVFREQ BVDUR BVFREQsd BVDURsd
## Min. : 0.7139 Min. :3.916 Min. :-0.877272 Min. :0.0000 Min. : 21.14 Min. : 37.57 Min. : 3053 Min. : 14.78 Min. : 1672
## 1st Qu.:38.3352 1st Qu.:5.860 1st Qu.:-0.209799 1st Qu.:0.3890 1st Qu.: 32.82 1st Qu.: 60.80 1st Qu.: 5776 1st Qu.: 60.80 1st Qu.: 5776
## Median :47.4249 Median :6.244 Median :-0.088852 Median :0.5440 Median : 48.79 Median : 75.09 Median : 6589 Median : 75.09 Median : 6589
## Mean :37.1065 Mean :6.152 Mean : 0.001859 Mean :0.5812 Mean : 54.79 Mean : 72.25 Mean : 6915 Mean : 71.65 Mean : 6810
## 3rd Qu.:50.5209 3rd Qu.:6.542 3rd Qu.: 0.247658 3rd Qu.:0.6670 3rd Qu.: 68.16 3rd Qu.: 82.77 3rd Qu.: 7650 3rd Qu.: 82.77 3rd Qu.: 7650
## Max. :57.2651 Max. :7.477 Max. : 1.011334 Max. :2.2210 Max. :147.13 Max. :130.86 Max. :13055 Max. :130.86 Max. :13055
## uDMI sdDMI cvDMI
## Min. :5.103 Min. :1.947 Min. :0.2816
## 1st Qu.:6.374 1st Qu.:2.326 1st Qu.:0.3364
## Median :6.718 Median :2.432 Median :0.3676
## Mean :6.681 Mean :2.496 Mean :0.3764
## 3rd Qu.:7.033 3rd Qu.:2.645 3rd Qu.:0.3984
## Max. :7.860 Max. :3.226 Max. :0.62685.3 Excercise 1
First, lets run summary statistics on the variables of interest.
## [1] "VID" "Pen" "CreepTrt" "WeanTrt" "D_42_BW" "Creep_Gain" "Shipping_Loss" "Day56_InitialBW"
## [9] "Day56_ADG" "Day56_MMBW" "Day56_DMI" "Day56_Residual" "D_1_EV" "AVE_TTB" "BVFREQ" "BVDUR"
## [17] "BVFREQsd" "BVDURsd" "uDMI" "sdDMI" "cvDMI"# Variables we're interested in uDMI, sdDMI, Day56_ADG, Day56_Residual
par(mfrow = c(2,2))
hist(heifer$uDMI, main = 'Average DMI, kg', xlab = 'DMI, kg', ylab = '')
hist(heifer$sdDMI, main = 'Standard Deviation DMI, kg', xlab = 'SD DMI, kg', ylab = '')
hist(heifer$Day56_ADG, main = 'Average Daily Gain, kg', xlab = 'ADG, kg', ylab = '')
hist(heifer$Day56_Residual, main = 'Residual Feed Intake', xlab = 'RFI', ylab = '')
5.3.1 Heifer data
## [1] "VID" "Pen" "CreepTrt" "WeanTrt" "D_42_BW" "Creep_Gain" "Shipping_Loss" "Day56_InitialBW"
## [9] "Day56_ADG" "Day56_MMBW" "Day56_DMI" "Day56_Residual" "D_1_EV" "AVE_TTB" "BVFREQ" "BVDUR"
## [17] "BVFREQsd" "BVDURsd" "uDMI" "sdDMI" "cvDMI"## `geom_smooth()` using formula = 'y ~ x'
5.3.2 Model
Next we need to define the Jags model to find the conjugated distribution
# Data list ----
# Data
data_list <- list(
x = heifer$cvDMI, # Example predictor values
y = heifer$Day56_ADG, # Example response values
N = nrow(heifer) # Number of observations
)
## Jags model ----
# Define the model
model_string <- "
model {
for (i in 1:N) {
y[i] ~ dnorm(mu[i], tau)
mu[i] <- beta0 + beta1 * x[i]
}
# Priors
beta0 ~ dunif(-10, 10)
beta1 ~ dunif(-1, 1)
sigma ~ dunif(0, 100)
tau <- 1 / (sigma * sigma)
}
"
# Initial values
inits <- list(list(beta0 = 0, beta1 = 0, sigma = 1))
# Parameters to monitor
(params <- c("beta0", "beta1", "sigma", 'y'))## [1] "beta0" "beta1" "sigma" "y"Now we have the model set up, we are ready to run the model through jags
# Run the model
model <- jags.model(textConnection(model_string), data = data_list, inits = inits, n.chains = 1)## Compiling model graph
## Resolving undeclared variables
## Allocating nodes
## Graph information:
## Observed stochastic nodes: 77
## Unobserved stochastic nodes: 3
## Total graph size: 320
##
## Initializing model
##
## | | | 0% | |+ | 2% | |++ | 4% | |+++ | 6% | |++++ | 8% | |+++++ | 10% | |++++++ | 12% | |+++++++ | 14% | |++++++++ | 16% | |+++++++++ | 18% | |++++++++++ | 20% | |+++++++++++ | 22% | |++++++++++++ | 24% | |+++++++++++++ | 26% | |++++++++++++++ | 28% | |+++++++++++++++ | 30% | |++++++++++++++++ | 32% | |+++++++++++++++++ | 34% | |++++++++++++++++++ | 36% | |+++++++++++++++++++ | 38% | |++++++++++++++++++++ | 40% | |+++++++++++++++++++++ | 42% | |++++++++++++++++++++++ | 44% | |+++++++++++++++++++++++ | 46% | |++++++++++++++++++++++++ | 48% | |+++++++++++++++++++++++++ | 50% | |++++++++++++++++++++++++++ | 52% | |+++++++++++++++++++++++++++ | 54% | |++++++++++++++++++++++++++++ | 56% | |+++++++++++++++++++++++++++++ | 58% | |++++++++++++++++++++++++++++++ | 60% | |+++++++++++++++++++++++++++++++ | 62% | |++++++++++++++++++++++++++++++++ | 64% | |+++++++++++++++++++++++++++++++++ | 66% | |++++++++++++++++++++++++++++++++++ | 68% | |+++++++++++++++++++++++++++++++++++ | 70% | |++++++++++++++++++++++++++++++++++++ | 72% | |+++++++++++++++++++++++++++++++++++++ | 74% | |++++++++++++++++++++++++++++++++++++++ | 76% | |+++++++++++++++++++++++++++++++++++++++ | 78% | |++++++++++++++++++++++++++++++++++++++++ | 80% | |+++++++++++++++++++++++++++++++++++++++++ | 82% | |++++++++++++++++++++++++++++++++++++++++++ | 84% | |+++++++++++++++++++++++++++++++++++++++++++ | 86% | |++++++++++++++++++++++++++++++++++++++++++++ | 88% | |+++++++++++++++++++++++++++++++++++++++++++++ | 90% | |++++++++++++++++++++++++++++++++++++++++++++++ | 92% | |+++++++++++++++++++++++++++++++++++++++++++++++ | 94% | |++++++++++++++++++++++++++++++++++++++++++++++++ | 96% | |+++++++++++++++++++++++++++++++++++++++++++++++++ | 98% | |++++++++++++++++++++++++++++++++++++++++++++++++++| 100%## | | | 0% | |* | 2% | |** | 4% | |*** | 6% | |**** | 8% | |***** | 10% | |****** | 12% | |******* | 14% | |******** | 16% | |********* | 18% | |********** | 20% | |*********** | 22% | |************ | 24% | |************* | 26% | |************** | 28% | |*************** | 30% | |**************** | 32% | |***************** | 34% | |****************** | 36% | |******************* | 38% | |******************** | 40% | |********************* | 42% | |********************** | 44% | |*********************** | 46% | |************************ | 48% | |************************* | 50% | |************************** | 52% | |*************************** | 54% | |**************************** | 56% | |***************************** | 58% | |****************************** | 60% | |******************************* | 62% | |******************************** | 64% | |********************************* | 66% | |********************************** | 68% | |*********************************** | 70% | |************************************ | 72% | |************************************* | 74% | |************************************** | 76% | |*************************************** | 78% | |**************************************** | 80% | |***************************************** | 82% | |****************************************** | 84% | |******************************************* | 86% | |******************************************** | 88% | |********************************************* | 90% | |********************************************** | 92% | |*********************************************** | 94% | |************************************************ | 96% | |************************************************* | 98% | |**************************************************| 100%## | | | 0% | |* | 2% | |** | 4% | |*** | 6% | |**** | 8% | |***** | 10% | |****** | 12% | |******* | 14% | |******** | 16% | |********* | 18% | |********** | 20% | |*********** | 22% | |************ | 24% | |************* | 26% | |************** | 28% | |*************** | 30% | |**************** | 32% | |***************** | 34% | |****************** | 36% | |******************* | 38% | |******************** | 40% | |********************* | 42% | |********************** | 44% | |*********************** | 46% | |************************ | 48% | |************************* | 50% | |************************** | 52% | |*************************** | 54% | |**************************** | 56% | |***************************** | 58% | |****************************** | 60% | |******************************* | 62% | |******************************** | 64% | |********************************* | 66% | |********************************** | 68% | |*********************************** | 70% | |************************************ | 72% | |************************************* | 74% | |************************************** | 76% | |*************************************** | 78% | |**************************************** | 80% | |***************************************** | 82% | |****************************************** | 84% | |******************************************* | 86% | |******************************************** | 88% | |********************************************* | 90% | |********************************************** | 92% | |*********************************************** | 94% | |************************************************ | 96% | |************************************************* | 98% | |**************************************************| 100%And do a preliminary look at the results.
beta0chain = MCMCchains(samples, params = 'beta0')
plot(density(beta0chain), main = "beta0chain")
rug(beta0chain, co = 'red')
abline(v = quantile(beta0chain, c(.025, .975)), col = "red", lwd = 2)
## 2.5% 97.5%
## 1.123866 1.339213## [1] 1.25573beta1chain = MCMCchains(samples, params = 'beta1')
plot(density(beta1chain), main = 'beta1chain')
rug(beta1chain, col = 'blue')
abline(v = quantile(beta1chain, c(.025, .975)), col = "red", lwd = 2)
## 2.5% 97.5%
## -0.9962271 -0.5283343y = MCMCpstr(samples, params = 'y')

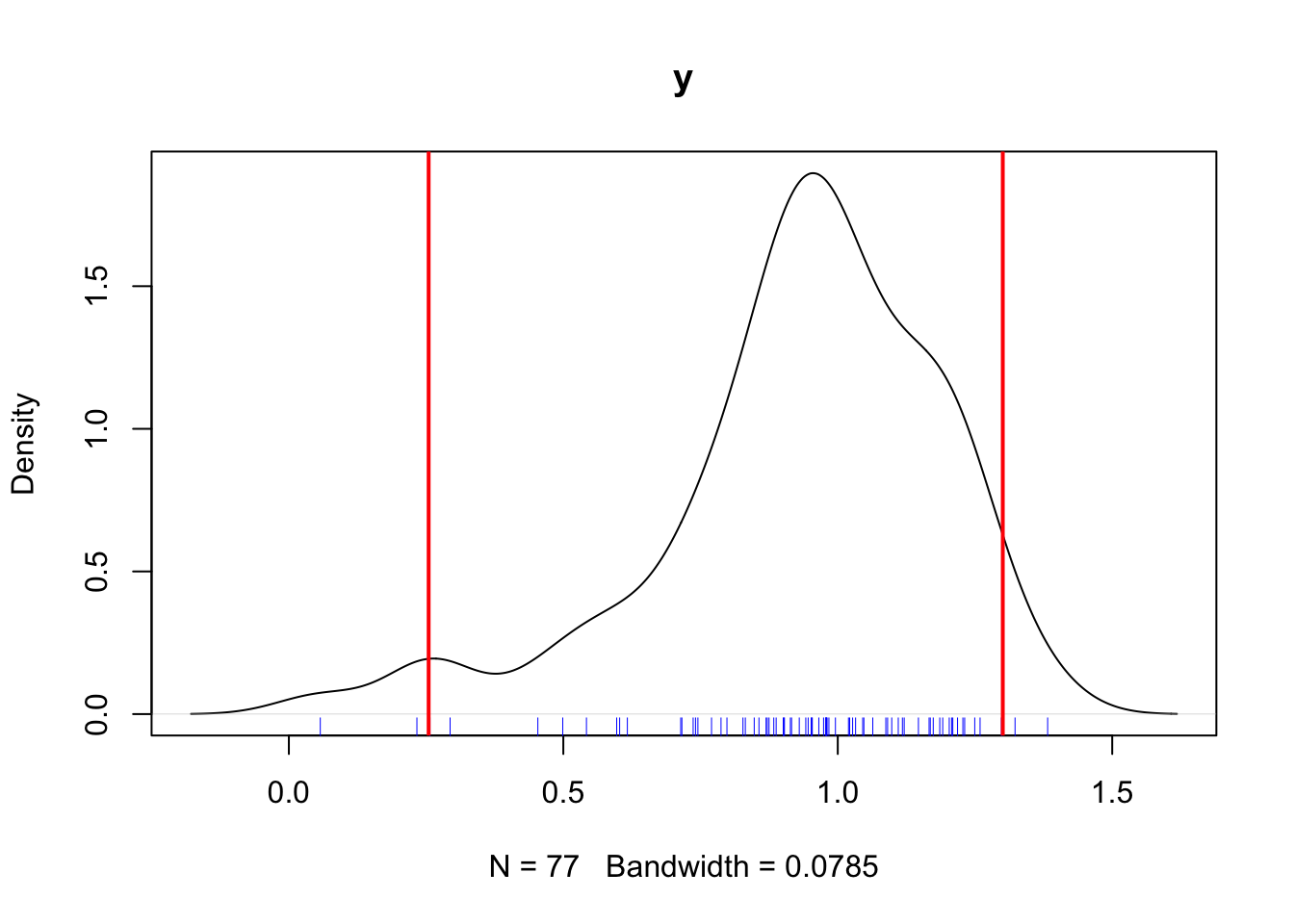

plot(density(y$y), main = 'y')
rug(y$y, col = 'blue')
abline(v = quantile(y$y, c(.025, .975)), col = "red", lwd = 2)
## 2.5% 97.5%
## 0.2546595 1.3006211Summarise results
5.3.3 Summary Plots
Prior Plots
## Plots
# Prior plots ------
iter = 5000
priors = data.table(b0 = runif(iter,-10, 10),
b1 = runif(iter,-1, 1),
sigma = runif(iter, 0,100))
# priors
class(samples)## [1] "mcmc.list"##
## Call:
## lm(formula = data_list$y ~ data_list$x)
##
## Residuals:
## Min 1Q Median 3Q Max
## -0.53087 -0.15294 -0.00357 0.15347 0.43800
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 1.8462 0.1717 10.754 < 2e-16 ***
## data_list$x -2.4326 0.4511 -5.392 7.78e-07 ***
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.2221 on 75 degrees of freedom
## Multiple R-squared: 0.2794, Adjusted R-squared: 0.2698
## F-statistic: 29.07 on 1 and 75 DF, p-value: 7.777e-07Posterior Plots

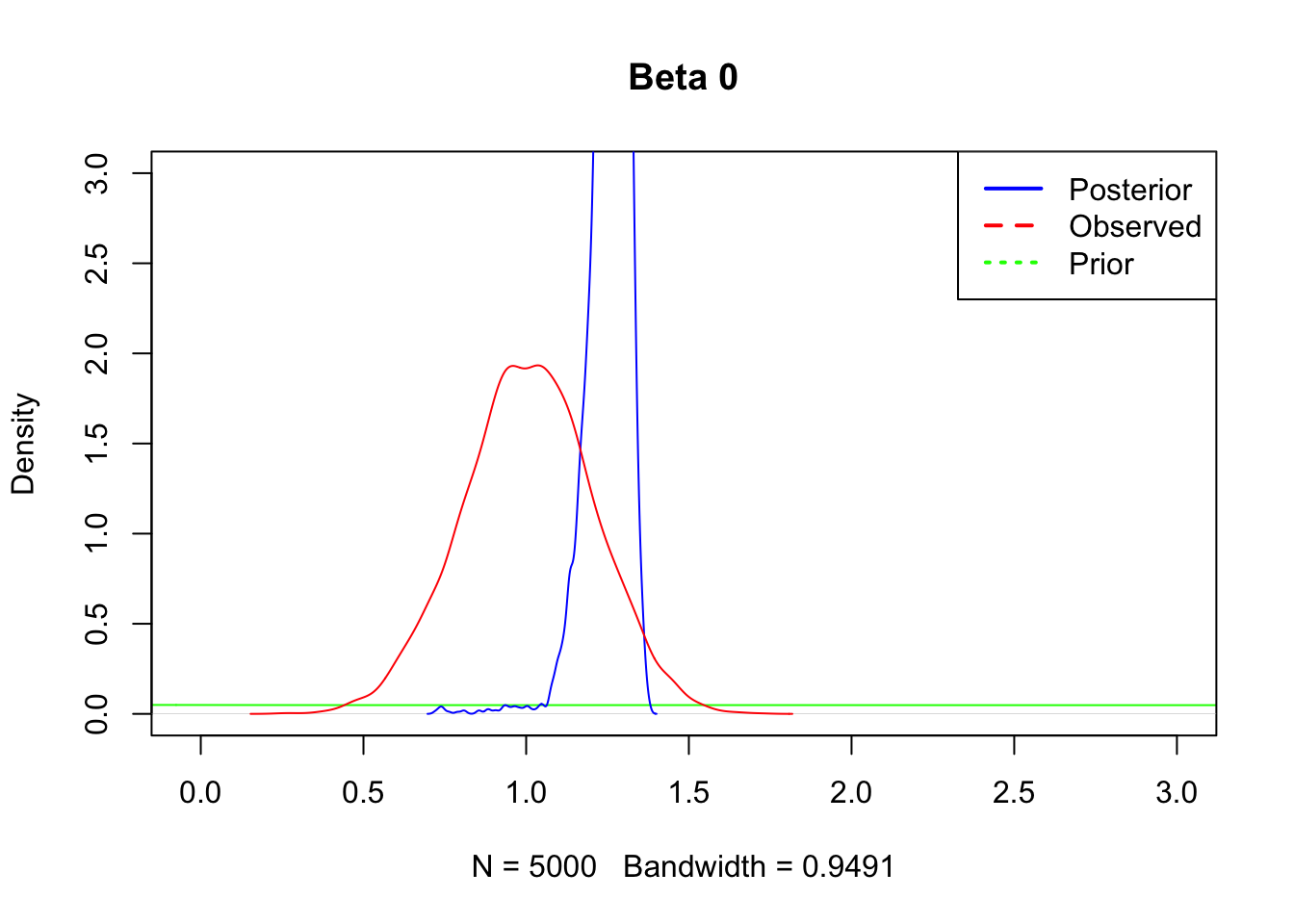

## Beta 0 ----
observed = rnorm(iter, 1.01, 0.20)
beta0 = MCMCchains(samples, params = c("beta0"))
length(beta0)## [1] 5000plot(density(priors$b0), xlim = c(-.03, 3), ylim = c(0,3), col = 'green', main = 'Beta 0')
lines(density(beta0), col = 'blue')
lines(density(observed), col = 'red')
legend("topright", legend = c("Posterior", "Observed", "Prior"),
col = c("blue", "red", "green"), lwd = 2, lty = c(1, 2, 3))

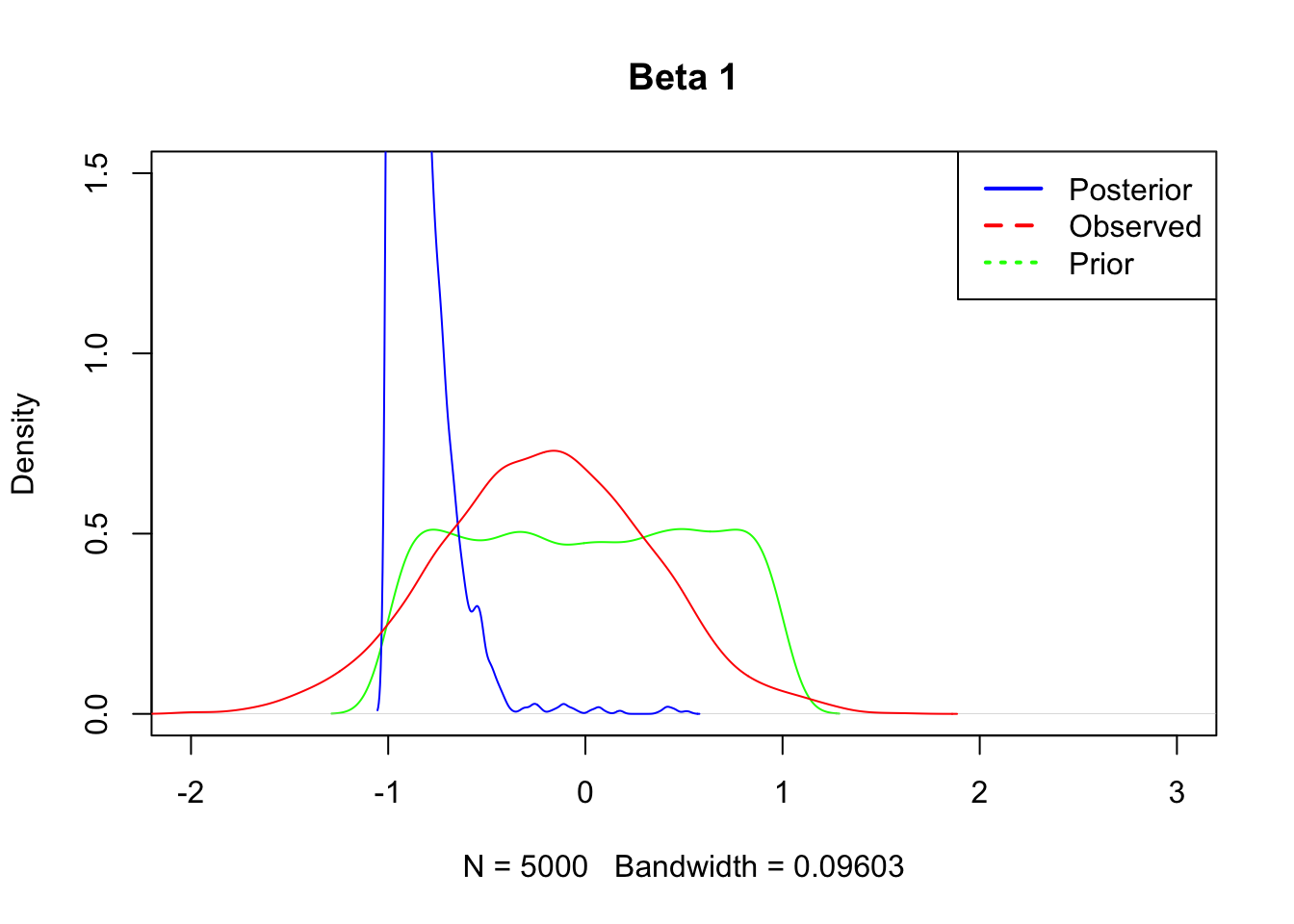

# Beta 1 ----
uCV = mean(heifer$cvDMI)
sdCV = sd(heifer$cvDMI)
oCV = rnorm(iter, -0.211, 0.53)
beta1 = MCMCchains(samples, params = c("beta1"))
plot(density(priors$b1), xlim = c(-2, 3), ylim = c(0,1.5), col = 'green', main = 'Beta 1')
lines(density(beta1), col = 'blue')
lines(density(oCV), col = 'red')
legend("topright", legend = c("Posterior", "Observed", "Prior"),
col = c("blue", "red", "green"), lwd = 2, lty = c(1, 2, 3))
5.4 Excercise 2
Now lets fit the model to see the effect of feed additive on post weaning growth. ### Data 2
## [1] "VID" "Pen" "CreepTrt" "WeanTrt" "D_42_BW" "Creep_Gain" "Shipping_Loss" "Day56_InitialBW"
## [9] "Day56_ADG" "Day56_MMBW" "Day56_DMI" "Day56_Residual" "D_1_EV" "AVE_TTB" "BVFREQ" "BVDUR"
## [17] "BVFREQsd" "BVDURsd" "uDMI" "sdDMI" "cvDMI"data_list <- list(
x = heifer$WeanTrt, # Example predictor values
y = heifer$Day56_ADG, # Example response values
N = nrow(heifer) # Number of observations
)5.4.1 Jags model 2
Eff
## [1] "VID" "Pen" "CreepTrt" "WeanTrt" "D_42_BW" "Creep_Gain" "Shipping_Loss" "Day56_InitialBW"
## [9] "Day56_ADG" "Day56_MMBW" "Day56_DMI" "Day56_Residual" "D_1_EV" "AVE_TTB" "BVFREQ" "BVDUR"
## [17] "BVFREQsd" "BVDURsd" "uDMI" "sdDMI" "cvDMI"data_list <- list(
x = ifelse(heifer$WeanTrt == "A",1,2), # Example predictor values
y = heifer$Day56_ADG, # Example response values
N = nrow(heifer), # Number of observations
K = length(unique(heifer$WeanTrt)) # Number of categories
)
## Jags model ----
# Define the model
model_string <- "
model {
# Likelihood
for (i in 1:N) {
y[i] ~ dnorm(mu[i], tau)
mu[i] <- beta[x[i]] # Treatment-specific mean
}
# Priors
for (k in 1:K) {
beta[k] ~ dnorm(0, 0.001) # Vague prior for treatment means
}
tau ~ dgamma(0.001, 0.001) # Precision (1/variance)
sigma <- 1 / sqrt(tau) # Standard deviation
# Derived quantity: difference between treatments (B - A)
delta <- beta[2] - beta[1]
}
"
# Write model to a temporary file
writeLines(model_string, "model.txt")
# Initialize JAGS model
jags_model <- jags.model(
file = "model.txt",
data = data_list,
n.chains = 3, # Number of MCMC chains
n.adapt = 1000 # Adaptation period
)## Compiling model graph
## Resolving undeclared variables
## Allocating nodes
## Graph information:
## Observed stochastic nodes: 77
## Unobserved stochastic nodes: 3
## Total graph size: 165
##
## Initializing model## | | | 0% | |* | 2% | |** | 4% | |*** | 6% | |**** | 8% | |***** | 10% | |****** | 12% | |******* | 14% | |******** | 16% | |********* | 18% | |********** | 20% | |*********** | 22% | |************ | 24% | |************* | 26% | |************** | 28% | |*************** | 30% | |**************** | 32% | |***************** | 34% | |****************** | 36% | |******************* | 38% | |******************** | 40% | |********************* | 42% | |********************** | 44% | |*********************** | 46% | |************************ | 48% | |************************* | 50% | |************************** | 52% | |*************************** | 54% | |**************************** | 56% | |***************************** | 58% | |****************************** | 60% | |******************************* | 62% | |******************************** | 64% | |********************************* | 66% | |********************************** | 68% | |*********************************** | 70% | |************************************ | 72% | |************************************* | 74% | |************************************** | 76% | |*************************************** | 78% | |**************************************** | 80% | |***************************************** | 82% | |****************************************** | 84% | |******************************************* | 86% | |******************************************** | 88% | |********************************************* | 90% | |********************************************** | 92% | |*********************************************** | 94% | |************************************************ | 96% | |************************************************* | 98% | |**************************************************| 100%# Sample from posterior
samples <- coda.samples(
jags_model,
variable.names = c("beta", "sigma", "delta"),
n.iter = 5000
)## | | | 0% | |* | 2% | |** | 4% | |*** | 6% | |**** | 8% | |***** | 10% | |****** | 12% | |******* | 14% | |******** | 16% | |********* | 18% | |********** | 20% | |*********** | 22% | |************ | 24% | |************* | 26% | |************** | 28% | |*************** | 30% | |**************** | 32% | |***************** | 34% | |****************** | 36% | |******************* | 38% | |******************** | 40% | |********************* | 42% | |********************** | 44% | |*********************** | 46% | |************************ | 48% | |************************* | 50% | |************************** | 52% | |*************************** | 54% | |**************************** | 56% | |***************************** | 58% | |****************************** | 60% | |******************************* | 62% | |******************************** | 64% | |********************************* | 66% | |********************************** | 68% | |*********************************** | 70% | |************************************ | 72% | |************************************* | 74% | |************************************** | 76% | |*************************************** | 78% | |**************************************** | 80% | |***************************************** | 82% | |****************************************** | 84% | |******************************************* | 86% | |******************************************** | 88% | |********************************************* | 90% | |********************************************** | 92% | |*********************************************** | 94% | |************************************************ | 96% | |************************************************* | 98% | |**************************************************| 100%
So the big question is, was there a difference between treatment A and treatment B?
# Extract posterior samples for delta
delta_samples <- as.matrix(samples)[, "delta"]
# Calculate probability that Treatment B has higher ADG than A (delta > 0)
prob_B_greater <- mean(delta_samples > 0)
cat("Probability that Treatment B has higher ADG than Treatment A:", prob_B_greater, "\n")## Probability that Treatment B has higher ADG than Treatment A: 0.3316# Create a density plot with shaded area for delta > 0
delta_df <- data.frame(delta = delta_samples)

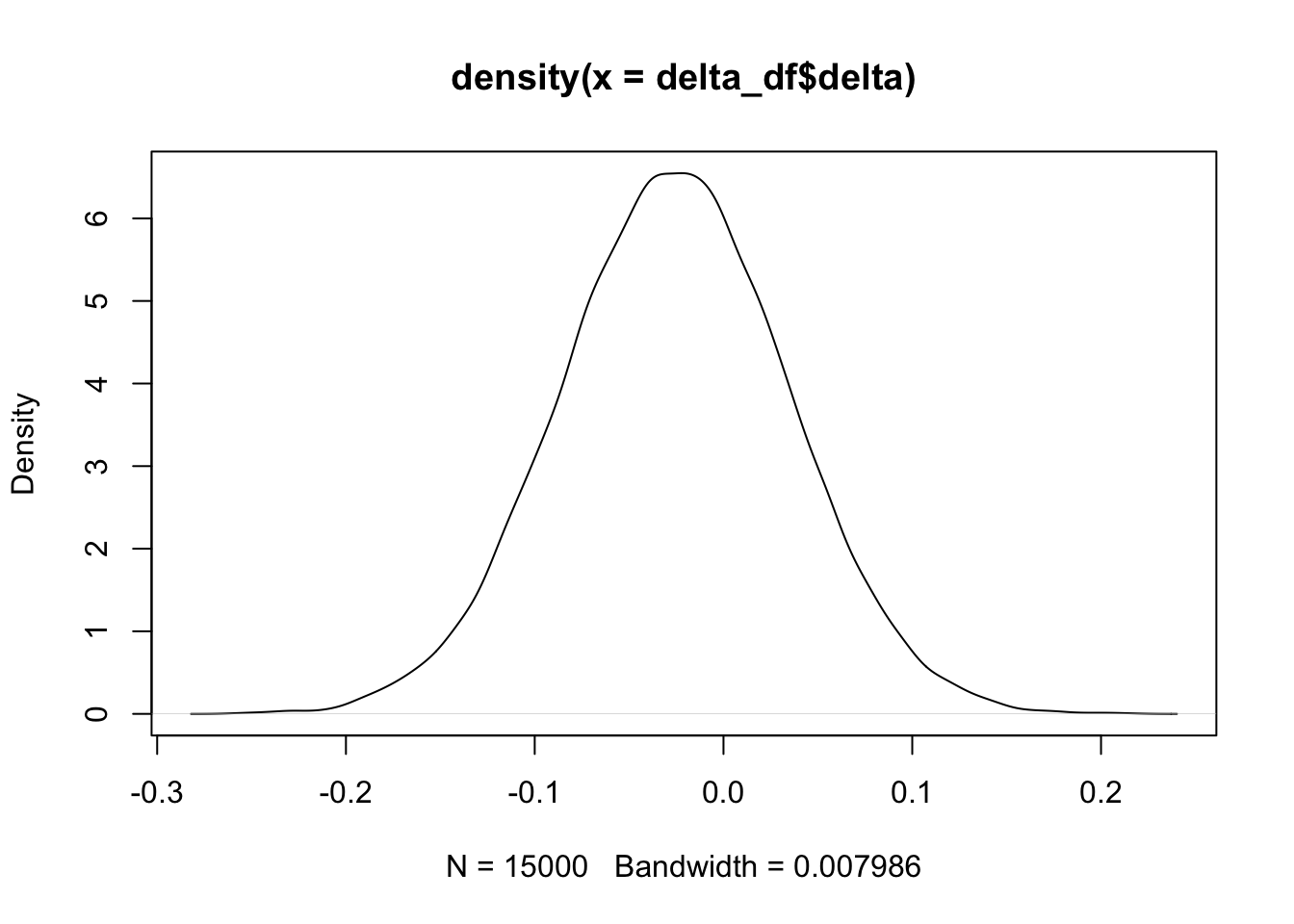

plot(density(delta_df$delta))

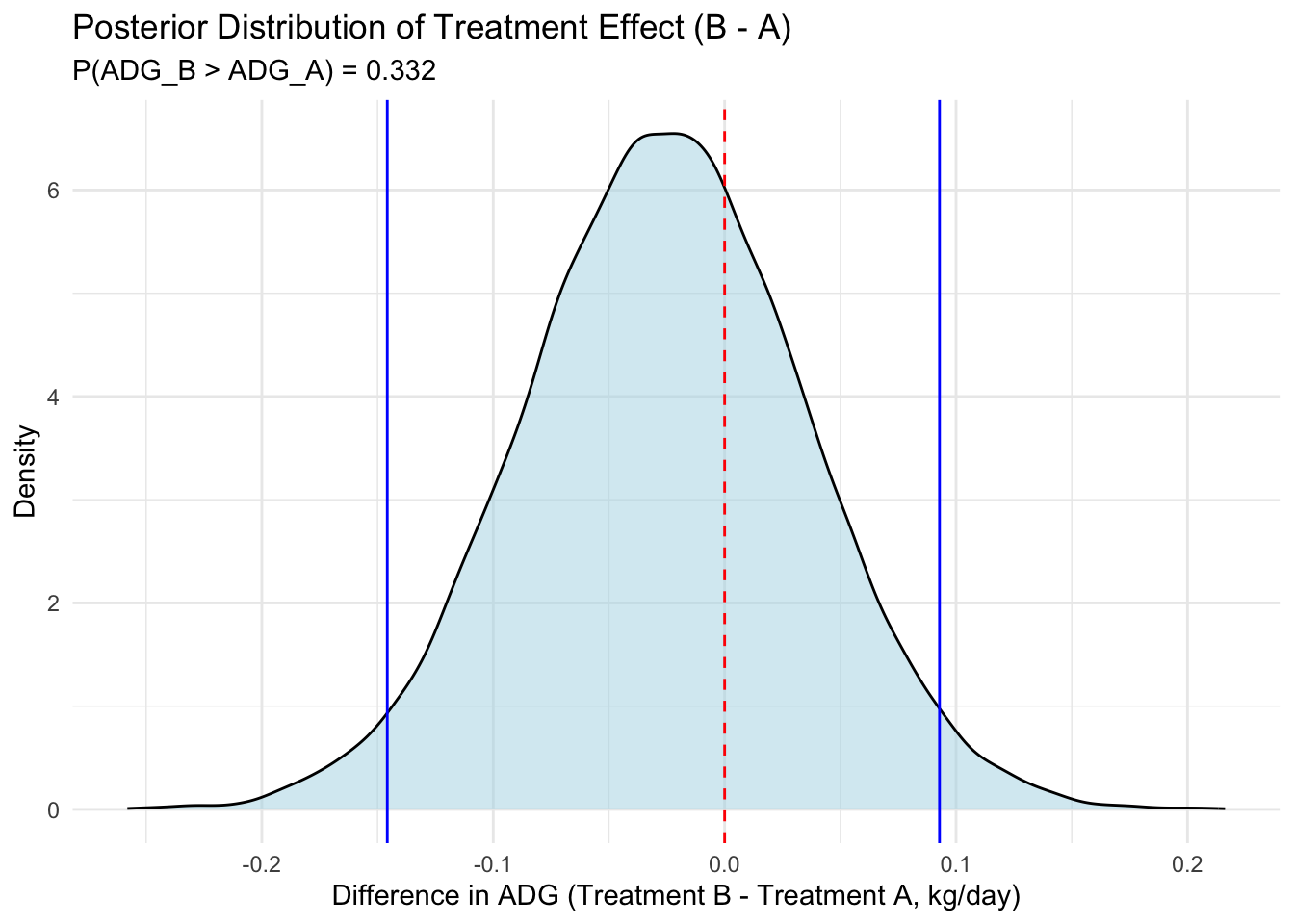

ggplot(delta_df, aes(x = delta)) +
geom_density(fill = "lightblue", alpha = 0.5) +
geom_vline(xintercept = 0, linetype = "dashed", color = "red") +
geom_vline(xintercept = quantile(delta_df$delta, c(0.025, 0.975)), color = 'blue')+
labs(
title = "Posterior Distribution of Treatment Effect (B - A)",
subtitle = paste("P(ADG_B > ADG_A) =", round(prob_B_greater, 3)),
x = "Difference in ADG (Treatment B - Treatment A, kg/day)",
y = "Density"
) +
theme_minimal()
